GATTA-SIM NANORULER

Nanorulers from the GATTA-SIM series are the perfect samples to check the resolution of your SIM system.

The single color nanorulers carry two fluorescent marks out of dense arrangements of high quantum yield dye

molecules. In addition we offer a new design containing three emitting points with two different fluorophores

which allows the acquisition of very eye-catching images. The mark-to-mark distances of the single color GATTA-SIM

nanorulers are available in the sizes 120 nm, 140 nm and 160 nm. We offer you the 160nm size in the colors red

(ATTO 647N), yellow (Alexa Fluor® 568) or blue (Alexa Fluor® 488). The 140 nm size is available in the colors yellow

and blue and the 120nm size is only available in blue. The multicolor nanorulers with three emitting points are

available in the sizes 140 nm (Alexa Fluor 568 & Alexa Fluor 488) and 160 nm (ATTO 647N & Alexa Fluor 568 or

ATTO 647N & Alexa Fluor 488).

On request we can also design special solutions for your specific requirements. All nanoruler samples will be

GATTA-SIM super-resolution picture delivered on a sealed glass slide which you can comfortably put directly on

your microscope.

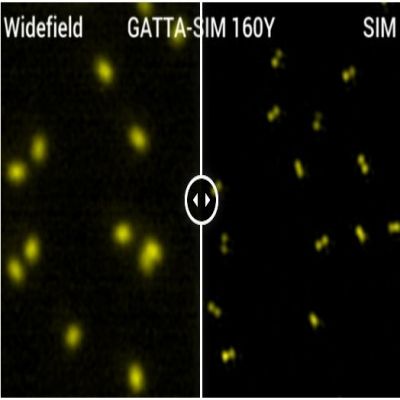

GATTA-SIM NANORULER.jpg

GATTA-SIM - BRIGHTLINE

The GATTAquant Brightline series delivers you a much better tool for your experiments and calibration measurements

we now developed a new series of GATTA-SIM nanorulers featuring an even higher fluorescence brightness but

without any loss of compactness compared to previous GATTA-SIM nanorulers.

Currently we provide as colors red (ATTO 647N), yellow (Alexa Fluor 568), and blue (Alexa Fluor 488).

If you could not find the new GATTA-SIM - brightline nanorulers with your required distance please add a note to

your request and we are happy to offer you custom samples optimized for your application.

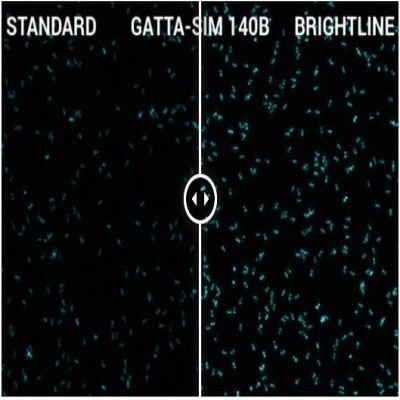

GATTA-SIM NANORULER-1.jpg

GATTA-SIM - BRIGHTLINE SERIES

PRODUCT PROPERTIES OF GATTA-SIM - BRIGHTLINE 160 NM NANORULER

Nanoruler	SIM 160R - brightline	SIM 160Y - brightline	SIM 160B - brightline
Color	red	yellow	blue
Available fluorophores	ATTO 647N	ATTO 565	Alexa Fluor® 488
Recommended laser source	630 - 650 nm	540 - 585 nm	480 - 505 nm
Surface density	≈ 1/µm²	≈ 1/µm²	≈ 1/µm²
Distance	160 nm	160 nm	160 nm
Level	Beginner	Beginner	Beginner
Price	N/A	N/A	N/A

PRODUCT PROPERTIES OF GATTA-SIM - BRIGHTLINE 140 NM AND 120 NM NANORULER

Nanoruler	SIM 140Y - brightline	SIM 140B - brightline	SIM 120B - brightline
Color	yellow	blue	blue
Available fluorophores	ATTO 565	Alexa Fluor® 488	Alexa Fluor® 488
Recommended laser source	540 - 585 nm	480 - 505 nm	480 - 505 nm
Surface density	≈ 1/µm²	≈ 1/µm²	≈ 1/µm²
Distance	140 nm	140 nm	120 nm
Level	Advanced	Advanced	Expert
Price	N/A	N/A	N/A

PRODUCT CHARACTERISTICS OF GATTA-SIM - BRIGHTLINE MULTICOLOR NANORULER

Nanoruler	SIM 160RYR - brightline	SIM 160RBR - brightline	SIM 140YBY - brightline
Color	red - yellow - red	red - blue - red	yellow - blue - yellow
Available fluorophores	ATTO 647N - ATTO 565 - ATTO 647N	ATTO 647N - Alexa Fluor® 488 - ATTO 647N	ATTO 565 - Alexa Fluor® 488 - ATTO 565
Recommended laser source	630 - 650 nm / 540 - 585 nm / 630 - 650 nm	630 - 650 nm / 480 - 505 nm / 630 - 650 nm	540 - 585 nm / 480 - 505 nm / 540 - 585 nm
Surface density	≈ 1/μm²	≈ 1/μm²	≈ 1/μm²
Distance	red - red: 160 nm / red - yellow: 80nm	red - red: 160 nm / red - blue: 80nm	yellow - yellow: 140 nm / yellow - blue: 70nm
Level	Beginner	Beginner	Advanced
Price	N/A	N/A	N/A

The standard version of our GATTA-SIM nanorulers you can still request on our legacy products page.

Beginner: Samples to check the basic functions of your microscope. Easy to resolve, also for beginners in the field of

super-resolution microscopy.

Advanced: Samples to optimize the settings of your microscope. Advanced experience is necessary in order to resolve

the nanorulers.

Expert: Samples which demand perfectly aligned microscopes and very experienced users which are able to optimize

acquisition and data evaluation.

FLUOROPHORE PROPERTIES

Fluorophore	Our notation	Excitation / nm	Emission / nm
ATTO 647N	R	647	664
ATTO 565	Y	564	590
Alexa Fluor 488	B	488	525
