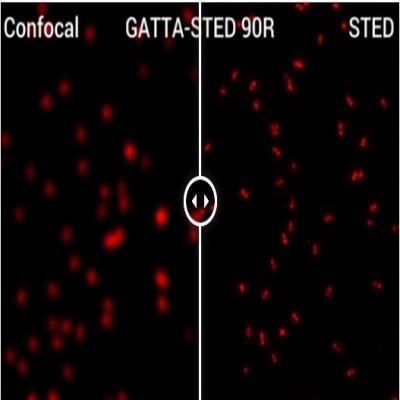

GATTA-STED NANORULER

Being the first super-resolution microscopy technique the STED method revolutionized the light microscopy.

With the nanorulers from the GATTA-STED series now adequate calibration probes are finally available.

The single color nanorulers carry two fluorescent marks out of dense arrangements of the high quantum yield dye

ATTO 647N. We offer the mark-to-mark distances in the sizes 50 nm, 70 nm, 90 nm and 120 nm. In addition we offer

a new design containing three emitting points with two different fluorophores which allows the acquisition of very

eye-catching images. The multicolor nanoruler with three emitting points is available with the size of 140 nm

(ATTO 647N & ATTO 594).

On request we can also design special solutions for your specific requirements. All nanoruler samples will be delivered

on a sealed glass slide which you can comfortably put directly on your microscope.

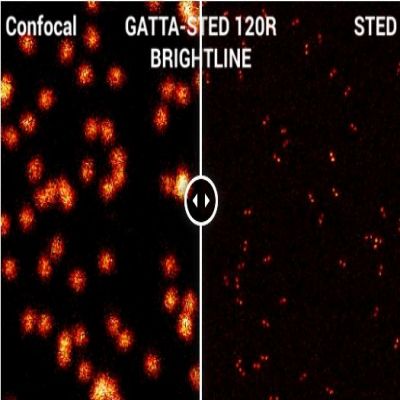

GATTA-STED - BRIGHTLINE

The GATTAquant Brightline series delivers you a much better tool for your experiments and calibration measurements

 we now developed a new series of GATTA-STED nanorulers featuring an even higher fluorescence brightness but

without any loss of compactness compared to previous GATTA-STED nanorulers.

Currently we provide as colors red (ATTO 647N), blue (Oregon Green 488) and multicolorer nanorulers with the

combination of red (ATTO 647N) and orange (Alexa Fluor 594).

GATTA-STED - BRIGHTLINE SERIES

PRODUCT PROPERTIES OF GATTA-STED - BRIGHTLINE NANORULER

PRODUCT PROPERTIES OF GATTA-STED - BRIGHTLINE MULTICOLOR NANORULER

The standard version of our GATTA-STED nanorulers you can still request on our legacy products page.

Beginner: Samples to check the basic functions of your microscope. Easy to resolve, also for beginners in the field of

microscopy.

Advanced: Samples to optimize the settings of your microscope. Advanced experience is necessary in order to resolve

the nanorulers.

FLUOROPHORE PROPERTIES
