GATTA-PAINT 3D – EXPERT AND ULTIMATE LINE

3D nanorulers from the GATTA-PAINT series are the ideal resolution rulers for any type of 3D localization-based

super-resolution microscope. Due to the mechanism for providing the blinking kinetics, which is based on the

DNA-PAINT technology, the samples are nearly free of photo bleaching. The samples consist of two spots or rings

oriented in axial direction to study the resolution capabilities in z.

We offer the GATTA-PAINT 3D nanorulers in two versions:

GATTA-PAINT 3D HiRes 80R Expert Line

GATTA-PAINT 3D 30R Ultimate Line

The GATTA-PAINT 3D HiRes 80R Expert Line is a nanoruler with two spots seperated by 80 nm.

For DNA-PAINT imaging we use ATTO 655 imagers. The ruler allows the experimental determination of the

refractive index mismatch between glass and water phase, which is fundamental for 3D measurements.

Therefore the sample shows a broader angular distrubution with standing, tilted and lying rulers (mainly upright),

from which one can determine the correction factor for the refractive index mismatch. The latest version of our

GATTAnalysis software has an automated fitting algorithm implemented. More information can be found in Schmied,

J. J. et al. DNA origami nanopillars as standards for three-dimensional superresolution microscopy.

Nano Lett 13, 781–785 (2013). Further the ruler contains DNA-PAINT-based fiducial markers known from our

HiRes series to support drift-correction. The GATTA-PAINT 3D HiRes 80R nanoruler is only recommended for very

experienced users having profound knowledge and experience with 3D imaging.

The GATTA-PAINT 3D 30R Ultimate Line is a nanoruler with two parallel rings with a distance of 30 nm, with each

ring having a diameter of 23 nm. For DNA-PAINT imaging we use ATTO 655 imagers. This nanoruler is only

recommended for very experienced users focussing on 4Pi or super critical angle systems.

DISTANCE AND ANGULAR DISTRIBUTION

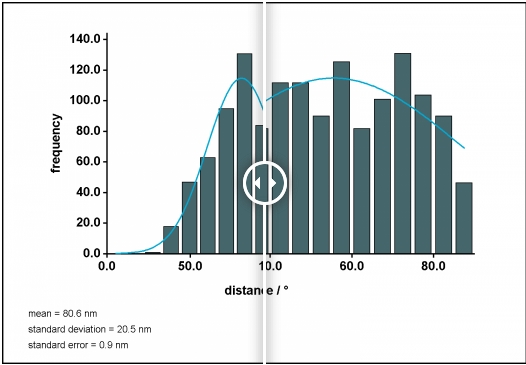

Distance and angular distribution from a measurement of GATTA-PAINT 3D HiRes 80R Expert Line Nanorulers

(move slider to switch from distance to angular plot).

PRODUCT PROPERTIES OF GATTA-PAINT 3D HIRES 80 EXPERT LINE

PRODUCT PROPERTIES OF GATTA-PAINT 3D 30 ULTIMATE LINE

Expert: Samples which demand perfectly aligned microscopes and very experienced users which are able to optimize

acquisition and data evaluation.

High-End Expert: Only for microscopes resolving below 30 nm in axial direction.

FLUOROPHORE PROPERTIES
